| FOB Price: | Negotiable |
| Min.Order Quantity: | 80 Meter / Meters |
| Supply Ability: | 5000 Meter / Meters per Month |
| Port: | Xingang, Tianjin |
| Payment Terms: | L/C,T/Ts |
  |
|

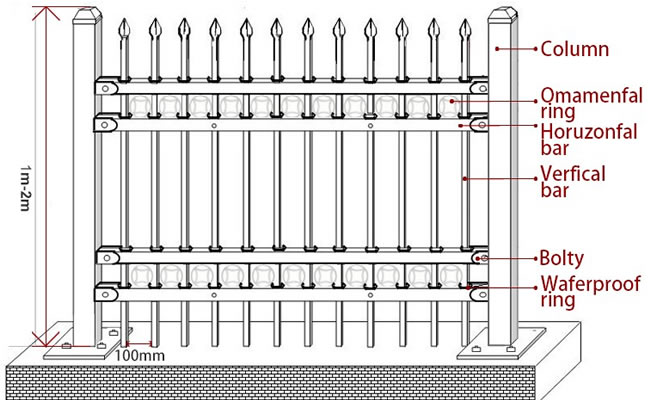

Our ornamental fence panels are manufactured by hand rather than by automated tools and can accomodate any style. It is assembled from different specifications square tube. Four anti-corrosion treatment, good corrosion resistance and long service life. Its accessories are waterproof ring, stainless steel anti-theft bolts and decorative rings, spring clips, U type clip. Without welding, pipe surface clean, no welding, It can be assembled on-site installation time .
Product information
Origin | Anping |
Brand | XH |
Material | Galvanized Steel Tube |
Surface treatment | Galvanized or powder coating |
Infill square pipe | 20x20,25X25mm;40X40mm,45X45mm |
Feature | Easily Assembled |
Usage | Garden, School, Residential,Road |
Pipe thickness | 1.2-3.0mm |
Model | DEK-SPF-G3.202 |
Color | Blue, Green, Black, White |
Square pipe post | 60x60mm,80x80mm |
Specifications
Installation | Post spacing (mm) | panel | post | ||||
Plate dimension (mm) | Horizontal bar quantity | Horizontal bar profile dimension (mm) | Vertical bar profile dimension (mm) | Length (mm) | Dia O.D (mm) | ||
1600 | 3000 | 2980*1500 | 3 | 40x60x1.5 | 25x25x1.2 | 1900 | 80x80x2 |
1900 | 3000 | 2980*1800 | 3 | 40x60x1.5 | 25x25x1.2 | 2200 | 80x80x2 |
2300 | 3000 | 2980*2200 | 3 | 40x60x1.5 | 25x25x1.2 | 2600 | 80x80x2 |
