Barbed Wire


FOB Price: Negotiable
Min.Order Quantity: 10 Ton / Tons
Supply Ability: 2000 Ton / Tons per Month
Port: Xingang, Tianjin
Payment Terms: L/C,T/Ts

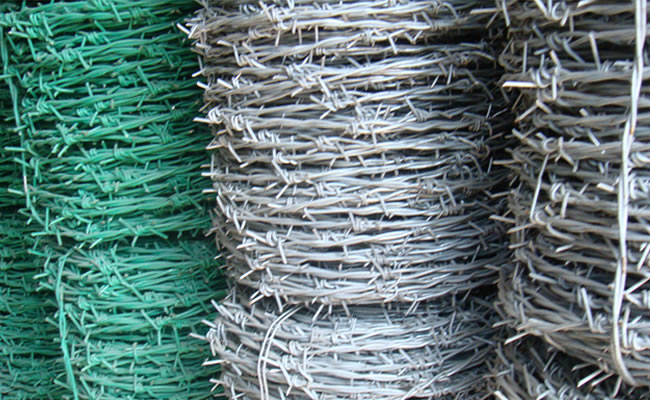

Hot dipped Galvanized / PVC/ PE Coated Barbed Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).

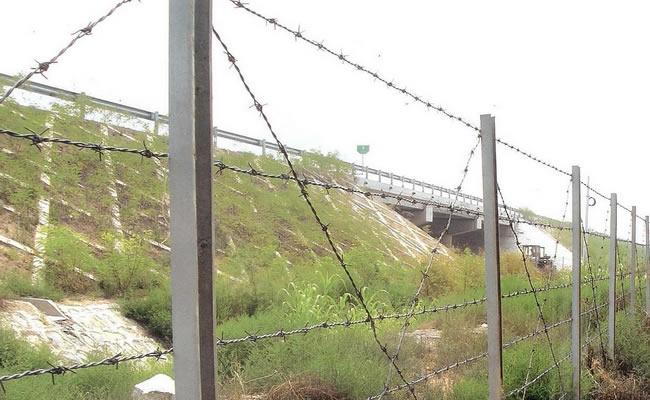

Galvanized Barbed Iron Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire
Features: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

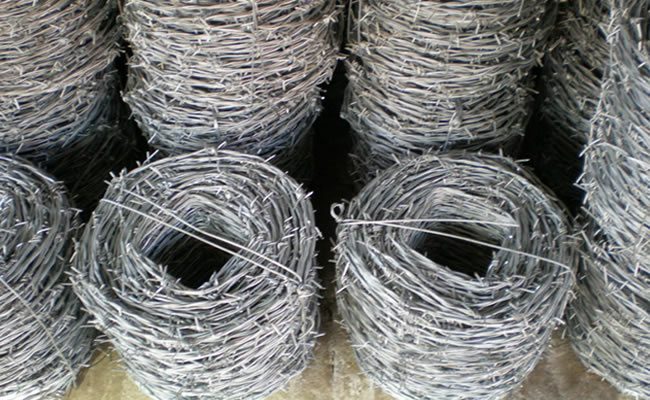

Packing: In coils. 12-25kg.

Barbed Wire Specification

Type

Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#



PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
